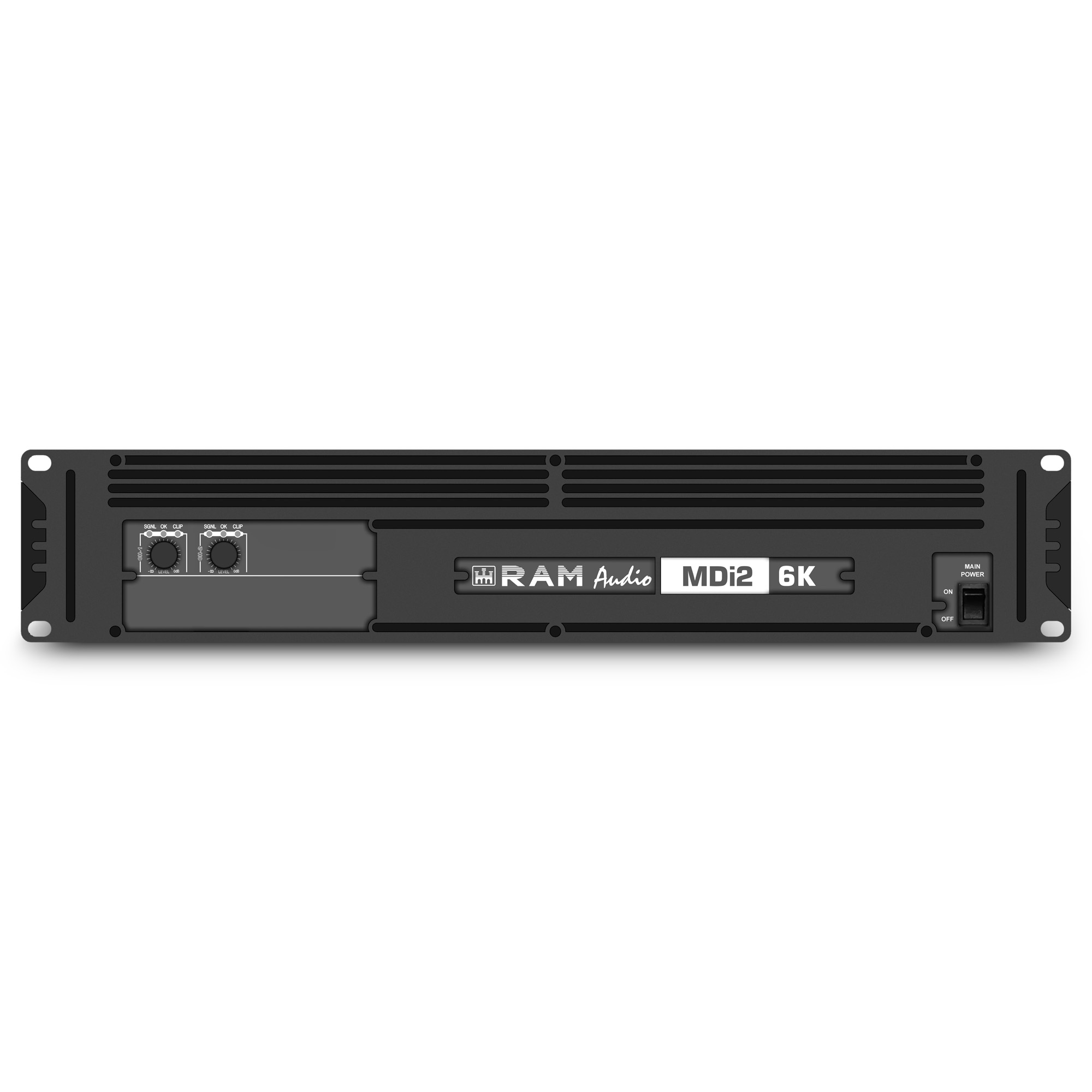

Ram Audio MDi2-6K - PA zosilňovač 2 x 3000 W 4 ohmy
Nová generácia spínaných napájacích zdrojov QuantaPulse s korekciou účinníka na zvýšenie účinnosti. Myšlienka poskytnúť veľmi vysokú kapacitu okamžitého výkonu spolu s veľmi vyvinutými vysoko účinnými zvukovými modulmi triedy D a vynikajúcu kvalitu zvuku. RAM Audio vyvinula túto sériu, aby ponúkla najoptimálnejšie riešenie pre veľmi náročný trh pevných inštalácií.
• Menovitý výstupný výkon (1kHz @ 4 Ohmy) 2 x 3000 W
• Menovitý výstupný výkon (1kHz @ 8 ohmov) 2 x 900 W
• Hmotnosť 5 kg
ONLINE KATALÓG PRODUKTOV RAM AUDIO :
RAM AUDIO CATALOGUE
MDi Series is the newest solution from RAM Audio for fixed installations, where state-of-the-art amplification technology has been used to manage acoustic systems in the most efficient and greenest way possible, without diminishing quality of sound and dynamics that have always typified RAM Audio amplifiers.A new generation of QuantaPulse switching mode power supplies with Power Factor Correction to improve efficiency, with a schematic ...thought to give a very high capacity of instantaneous power, together with very evolved high efficiency audio modules in class D with an excellent quality of sound, are the basis on which RAM Audio has developed this new series that is capable of offering the most optimal solution to the very exigent fixed-installations market.
VIAC
4049521204661-RAMMDI26K_1|4049521204661-RAMMDI26K_2
![]()
![]()
Product typePower AmplifiersTypePA Power AmplifiersRated ouput power (1kHz @ 4 Ohms)2 x 3000 WRated ouput power (1kHz @ 8 Ohms)2 x 900 WHigh Z 100Vrms / 140Vpeak2 x 3000 WOutput circuitryClass DFrequency response20 - 20000 HzTotal Harmonic Distortion (THD)0.05Gain75 dBInput sensitivity2.8 VProtection circuitsDC, HF Driver, mute when turning on/off, Open or mismatched loads, over-current, power supply overload, short circuit, soft start, thermal overloadControls2 x highpass/lowpass (switchable), 2 x volume, bridge/stereo mode selector, ground lift, mains switch (on/off)Indicatorslevel, Limit, Power, Protect (protection circuit engaged), SignalLoudspeaker outputs2Speaker output connectionsSpeakon compatibleCoolinghighly efficient, automaticOperating voltage170 - 264 VACWeight5 kg
